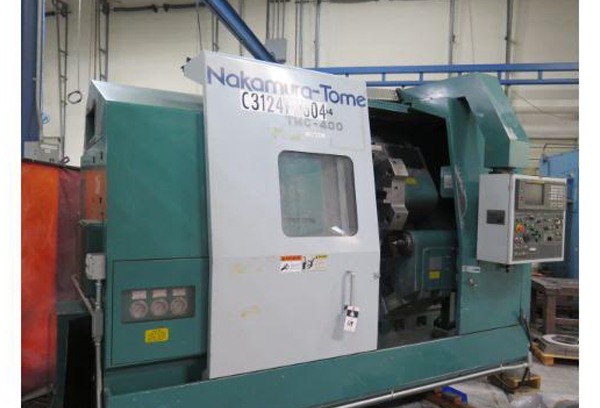

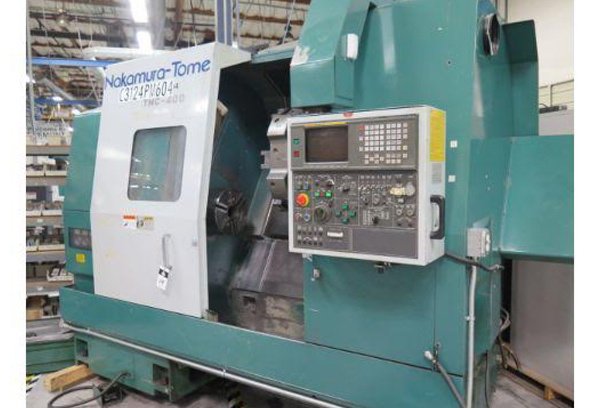

Nakamura SC 400
Nakamura SC 400
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Max turning diameter: 18.31" (465 mm)
- Max turning length: 21.65" (550 mm)
- Max bar capacity: 3.15" (80 mm)
- Swing over bed: 33.86" (860 mm)
- X-axis travel: 12.4" (315 mm)
- Z-axis travel: 23.23" (590 mm)
- Rapid traverse X-axis: 472 ipm (12 m/min)
- Rapid traverse Z-axis: 591 ipm (15 m/min)
- Spindle and turret
- Spindle nose: A2-8
- Spindle bore: 3.94" (100 mm)
- Spindle speed: 10-2500 rpm
- Spindle motor: 30 HP

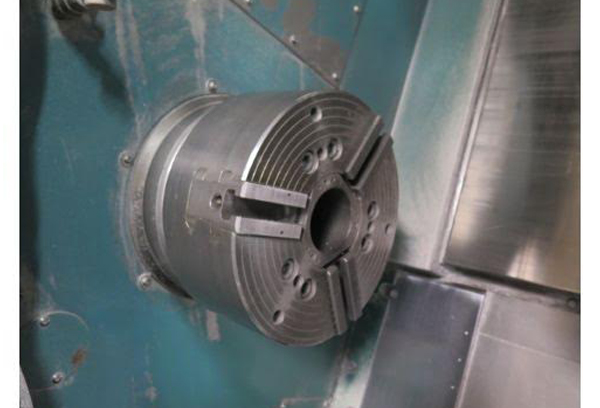

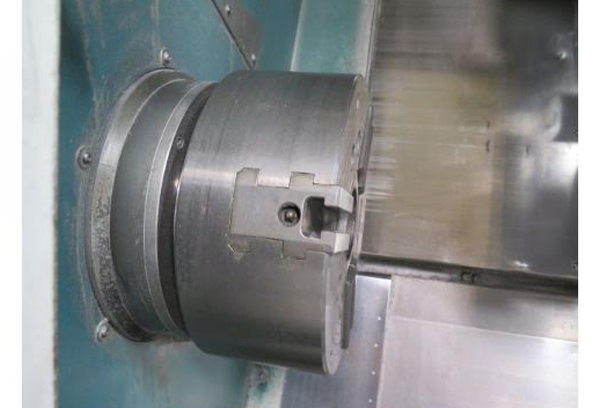

- Chuck size: 15" hydraulic chuck

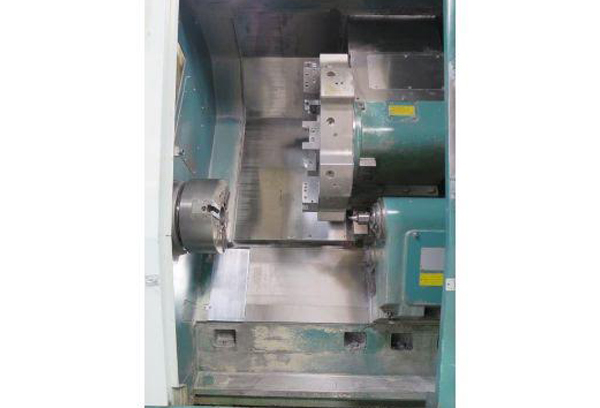

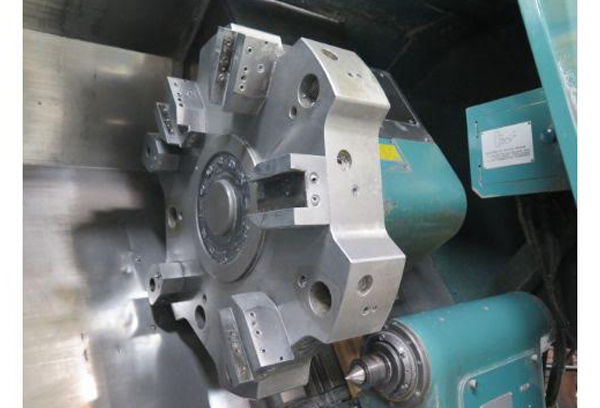

- Turret: 12-station
- Features and components

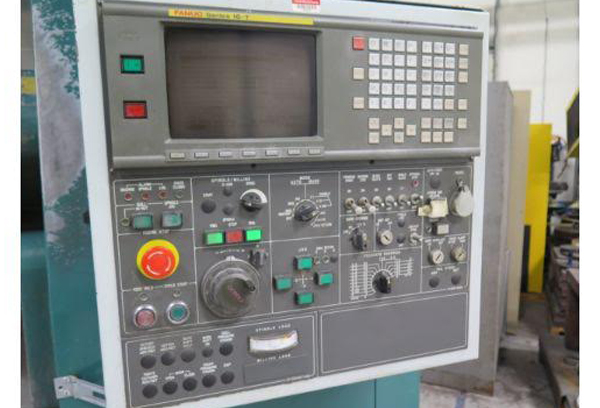

- CNC control: Fanuc 16T
- Construction: Heavy-duty box way

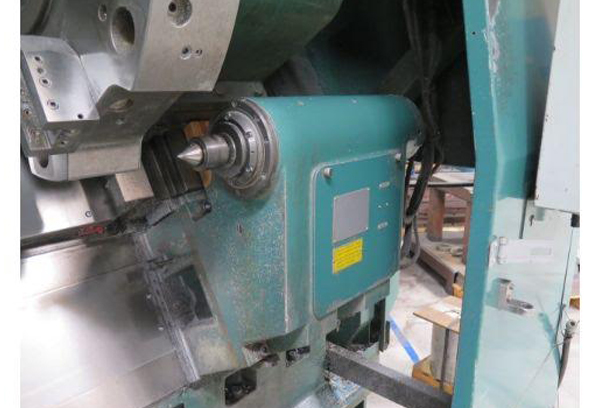

- Tailstock: Hydraulic with power quill
- Included accessories: Chip pan and conveyor, automatic lubrication
system
