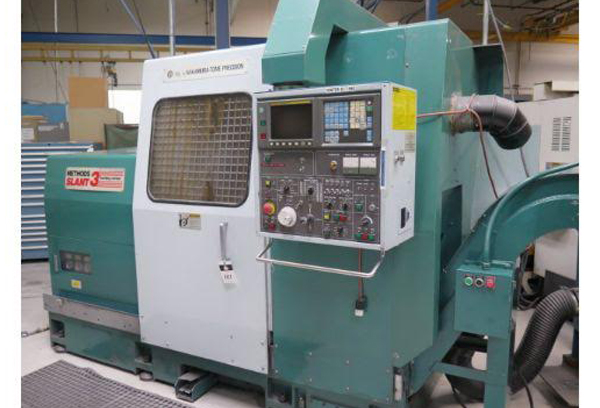

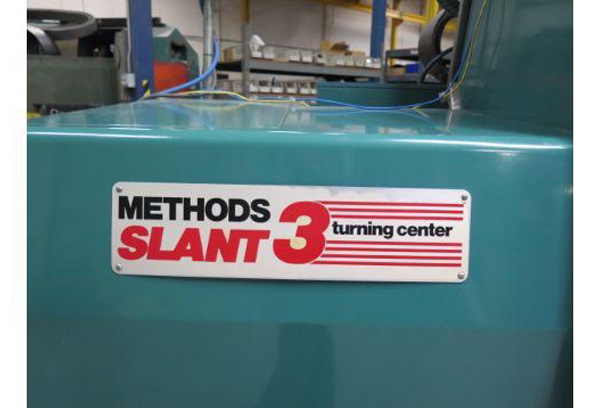

Nakamura Slant 3-1
Nakamura Slant 3-1
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Max turning diameter: 381 mm
- Max turning length: 540 mm
- Bar capacity: 63.5 mm

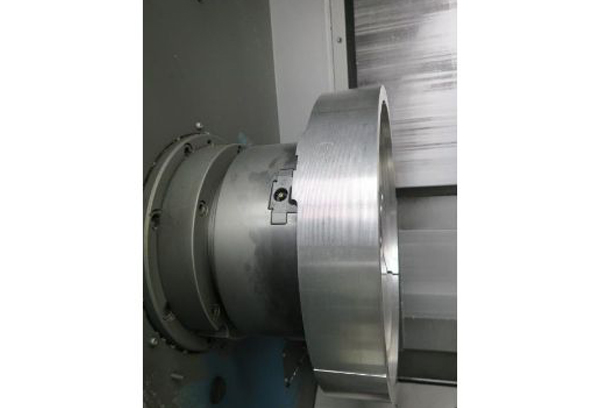

- Chuck size: 254 mm
- Distance between centers: 758 mm (for a Slant 3B model)
- Swing over bed: 787.4 mm
- Axis travels
- X-axis travel: 275 mm (for a Slant 3B model)
- Z-axis travel: 580 mm (for a Slant 3B model)
- Spindle and turret
- Spindle bore: 80 mm
- Spindle speed: 3,500 rpm

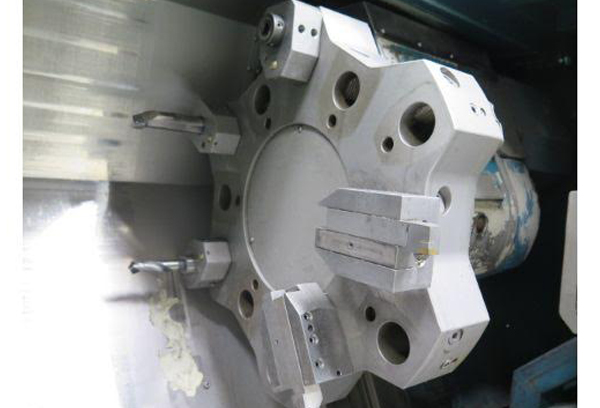

- Turret stations: 12
- Dimensions and weight
- Machine dimensions (LxWxH): 2,337 x 1,753 x 2,032 mm (for a Slant 3B
model)
- Weight: 5,490 kg (for a Slant 3B model)
